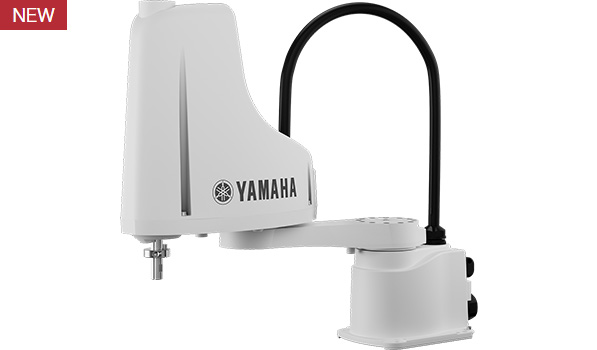

YE Series Cost-Effective SCARA Robots

The YE Series is a cost-effective SCARA robot designed for industrial automation applications. It helps manufacturers improve productivity, reduce labor costs, and maintain stable product quality with reliable and efficient operation.

Print

YE Series Cost-Effective SCARA Robots

The YE Series cost-effective SCARA robots are ideal for pick-and-place, assembly, packaging, inspection, and material handling applications in industries such as electronics, automotive components, consumer goods, and general manufacturing.

Arm Length:
400 mm to 710 mm
Maximum Payload:
4 kg to 10 kg

CAD data Operation manuals

Compatible Controller: RCX440 Support Software
RCX-Studio2020

Feature

01Lower Operating Costs and Reduced Setup Time

The absolute encoder backup battery, which stores home position data, has been relocated to the SCARA robot itself. This eliminates the need for homing adjustment during installation.
In addition, the number of required backup batteries has been reduced from four to one, helping lower running costs.

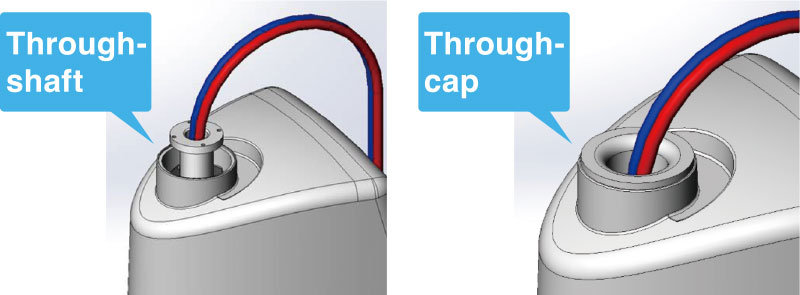

02Through-Hole Shaft and Through-Hole Cap Options Available

For easier routing of pneumatic tubing and electrical wiring, optional through-hole shafts and through-hole caps are available. These options eliminate the need to design and manufacture brackets for cable and tubing routing, making routing layout and installation easier. Routing cables and tubing through the robot body also helps reduce the risk of cable damage during operation.

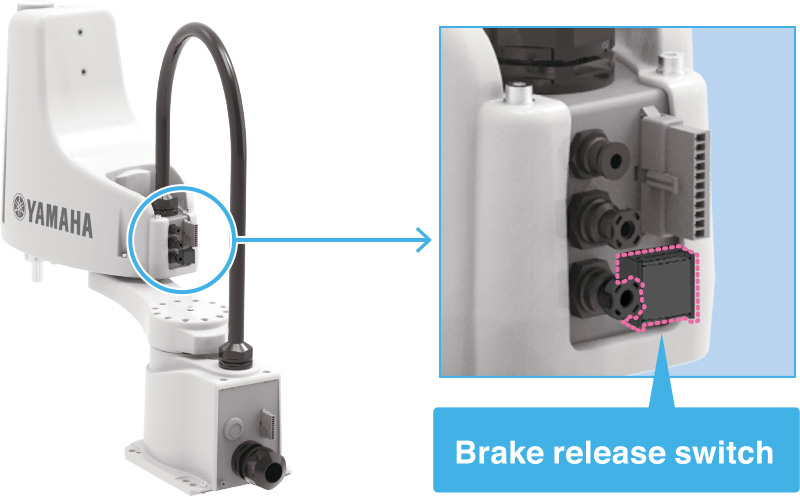

03Optional Brake Release Switch

When the robot is in an emergency stop condition, pressing and holding the brake release switch releases the Z-axis brake, allowing the Z-axis to be moved up and down manually. Releasing the switch re-engages the brake. This feature improves convenience during installation and adjustment.

Note: The image shown is the YK-XE model. The brake release switch is located in the same position on YE models.

04Easy-to-Use Solution with a Multifunctional Controller

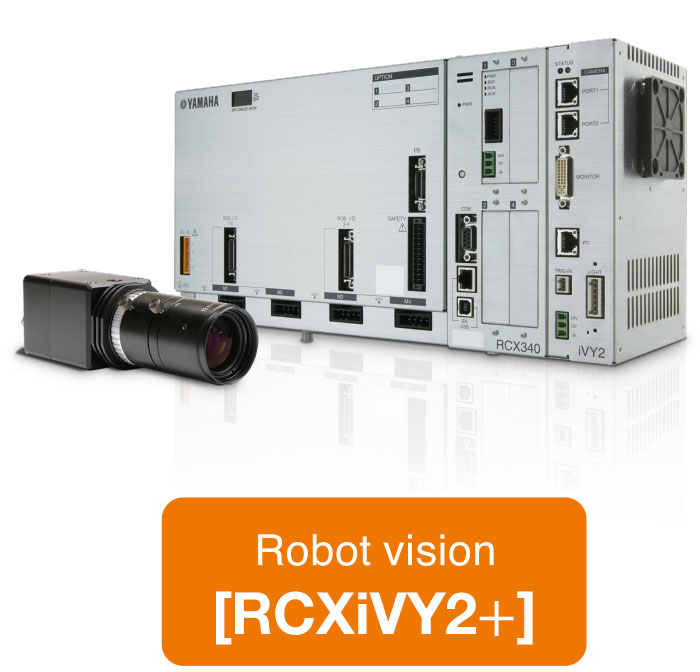

By using the compatible RCX440 controller, users can take advantage of the integrated robot vision system RCXiVY2+ and the support software RCX-Studio2020.This enables support for a wide variety of automation applications.

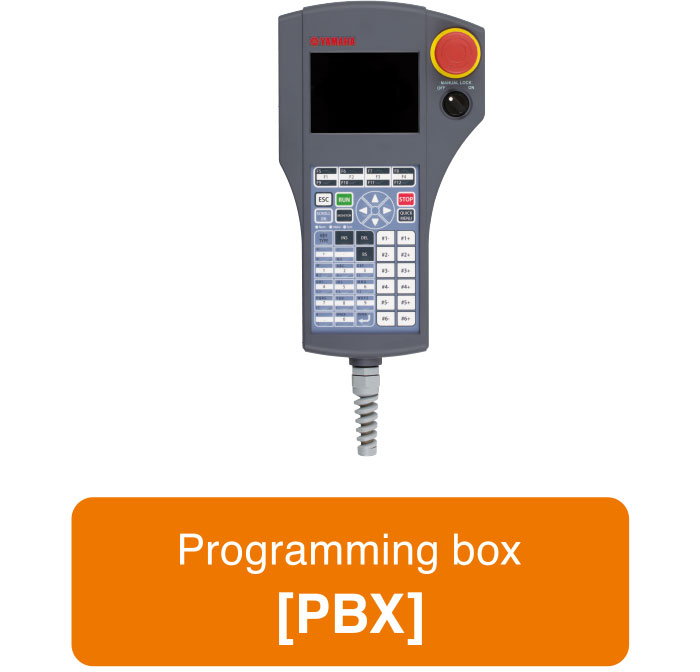

Learn more about RCXiVY2+ Learn more about
the Programming Box Learn more about RCX-Studio2020

FAQ

01

Does the YE comply with standards such as CE and KCs?: No. The YE does not comply with CE or KCs standards. If CE or KCs compliance is required, please use the YK-XE model.

02

Can I use the RCX340 controller with the YE?: No. The RCX340 is not compatible with the YE. Please use the RCX440 controller.
