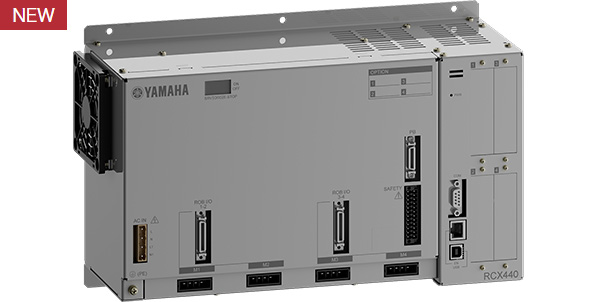

RCX440 Multi-Axis Robot Controller

The RCX440 is a cost-effective multi-axis robot controller designed for Yamaha industrial robots. It supports up to four axes, multiple industrial field networks, robot vision integration, and advanced automation applications.

Print

RCX440 Multi-Axis Robot Controller

Compatible Robot:
YE
Supported Networks: CC-Link, DeviceNet, EtherNet/IP, Ethernet, EtherCAT, PROFIBUS, PROFINET
Operation Modes:
Program Execution, Remote Command, Online Commands
Number of Points:
30,000 points
Input Power Supply:
Single-phase AC 200 V to 230 V (within ±10%)

Programming Box
PBX/PBX-E
PDF（PDF：293KB） Support Software
RCX-Studio 2020 Software Toolkit
RCX3-SDK Reduced-Wiring Field Network

CAD data Operation manuals

Features

01Further Cost Reduction Based on the RCX340 Platform

Changing the rotational sensor from a resolver to an encoder eliminates the need for a signal conversion circuit, reducing both component count and overall cost.

02Reduced Startup and Commissioning Time

By relocating the absolute encoder backup battery to the robot, the number of required batteries is reduced, lowering maintenance costs.

03Compliance with International Standards and Safety Certifications

We are continuously working to ensure compliance with applicable regulations and safety standards in the regions where our products are sold.

○: Compliant
—: Not Supported

Controller	CE	KCs	UL
RCX340	〇	〇	-
RCX440	-	-	-

Specification

Basic specifications
Applicable robots	SCARA robots YE Series
Connectedmotor capacity	1600W or less (in total for 4 axes)
Power capacity	2500VA
Dimensions	W355 × H195 × D130mm (main unit only)
Weight	5.9kg (main unit only)
Power Supply Voltage	Single-phase AC 200–230 V (±10%), 50/60 Hz
Grounding System	TN、TT
Axis control
No. of controllable axes	Max. 4 axes (simultaneous control: 6 axes) Expandable to up to 16 axes (4 robots) using YC-Link/E.
Drive method	AC full digital servo
Position detection method	Optical encoder
Control method	PTP motion (point to point), ARCH motion, linear interpolation, circular interpolation
Coordinate systems	Joint coordinates, Cartesian coordinates
Position display units	Pulses, mm (1/1000 steps), degree (1/1000 steps)
Speed setting	0.01 to 100% (below 1% can be changed by programming)
Acceleration/deceleration setting	Automatic acceleration setting by robot model and tip weight parameter Setting by acceleration coefficient and deceleration rate parameters (1% steps) * Can be changed by programming. Zone control (Only the SCARA robot can set an optimum speed corresponding to the arm position.)
Programming
Program language	YAMAHA BASIC II conforming to JIS B8439 (SLIM language)
Multi-task	Max. 16 tasks
Sequence program	1 Program
Memory capacity	2.1MB (Total of program and point data) (Available capacity for program when the maximum number of points is used: 300KB)
Program	100 programs (maximum number of programs) 9999 lines (maximum number of lines per program)
Point	30000 points (maximum number of points)
Point teaching method	MDI (coordinate data input), direct teaching, teaching playback, offline teaching (data input from external unit)
System backup (Internal memory backup)	Lithium battery (service life about 4 years at 0 to 40°C)
Internal flash memory	512KB
External I/O
SAFETY	Input	Emergency stop ready input, 2 systems
SAFETY	Output	Emergency stop contact output, 2 systems Enable contact output, 2 systems (Enabled only when the PBX-E is used.) Motor power ready output, 2 systems
Brake output		Transistor output (PNP open collector)
Origin sensor input		Connectable to 24V DC B-contact (normally closed) sensor
External communications		RS-232C : 1CH (D-SUB 9-pin (female)) Ethernet ： 1CH (In conformity with IEEE802.3u/IEEE802.3) 100Mbps/10Mbps (100BASE-TX/10BASE-T) Applicable to Auto Negotiation USB : 1CH (B type) RS-422 : 1CH (Dedicated to PBX)
General specifications
Operating temperature		0°C to 40°C
Storage temperature		-10°C to 65°C
Operating humidity		35 to 85% RH (no condensation)
Noise immunity		Conforms to IEC61000-4-4 Level 3
Protective structure		IP20
Appliance classes		Class I
Options
Option board ^Note.1	Parallel I/O board	Standard specifications	Dedicated input 8 points, dedicated output 9 points General-purpose input 16 points, general-purpose output 8 points NPN/PNP specifications are selected. (maximum 1 board)
	Parallel I/O board	Expansion specifications	General-purpose input 24 points, general-purpose output 16 points NPN/PNP specifications are selected. (maximum 4 boards)
	CC-Link board Ver1.1/2.0		Remote I/O Dedicated input/output: 16 points each General-purpose input/output: 96 points each Remote register Input/output: 16 words each
	DeviceNet™ board
	EtherNet/IP™ board^Note.2
	PROFIBUS board
	PROFINET board^Note.2
	EtherCAT board^Note.2
	YC-Link/E board(master/slave)		Communication cycle: 1 ms, control cycle: minimum 1 ms / maximum 8 ms, maximum number of robot units: four units
	YC-Link/E board(master/slave)		Maximum number of control axes: total 16 axes (including four master controller axes), maximum 12 axes for slaves only
	YRG(gripper) board		Position detection method: optical rotary encoder, minimum setting distance: 0.01 mm Speed setting: 20 to 100% relative to the maximum parameter speed, number of connected gripper units: maximum four units Drive power: DC 24V +/-10%, 1.0A Max
	Tracking board		Number of connected encoders: maximum two units, supported encoders: 26LS31/26C31 equivalent line driver (RS422 compliant) Encoder power supply: DC5V (2 counter (ch) total 500 mA or less) (supplied from controller)
RCXiVY2+ unit			Camera pixels: maximum 5 million pixels, number of registered models: 254 models, number of connected cameras: maximum two units Power supply: DC24V +/-10% 1.5A Max
Programming box			PBX, PBX-E
Support software for personal computer			RCX-Studio 2020

Note.1: There are four slots in which option boards can be installed.

Note.2: When the SIOW Expansion Parameter is enabled, the remote register I/O range is 120 words each (0–15 and 24–127).
For details on this parameter, refer to Chapter 8, Section 7.4.5, "Parameters for Optional Boards."
