Single axis robots Robonity Advanced model Long-Stroke type AGFS
Supports up to 200 kg. Patented “optimal supports” Enables Heavy-Duty Transport.
Advanced model
Long-Stroke type AGFS
Heaviest Portable Model , High Precision, High Durability, Standard Cleanroom Compliance
Single axis robots with a maximum payload of 200 kg.
Equipped with the optimal supports* enabling faster operation than conventional models.
- Maximum payload：
Up to 200 kg (Horizontal), 100 kg (Vertical) - Maximum speed：
Up to 2,400mm/sec - Stroke：
100 ~ 3,000mm
Feature

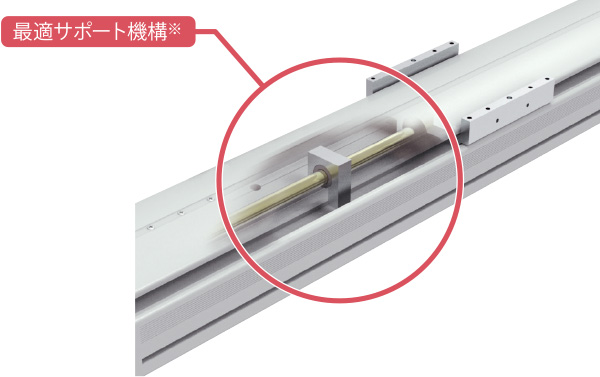

01High-Speed Conveyance with “optimal supports”*
In conventional single axis robots, when the ball screw becomes longer, high-speed operation causes deflection at the center, leading to vibration-induced resonance and reduced accuracy, which required lowering the speed.
Our Long-Stroke type is equipped with our proprietary “optimal supports”*, which suppresses ball screw vibration and prevents speed reduction. This achieves a wide stroke range with a maximum speed of 2,400 mm/sec—approximately twice as fast as our previous model (FLIP-X GF type).
*Patented
Various data
Specifications for each model are currently being prepared and will be published at a later date.
