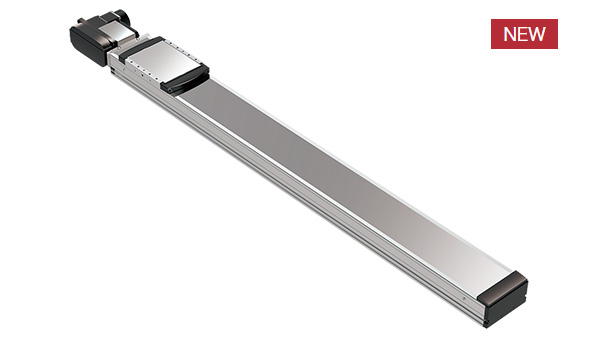

Single axis robots Robonity Advanced model Timing Belt Drive type AGBS
For high-speed, long-distance transport, these single axis robots are the ideal solution.
Advanced model
Timing Belt Drive type AGBS
Fastest Ever. More Power. Standard Cleanroom Compliance.
Belt-driven single axis robots enable high-speed, long-distance transport.
- Maximum payload：
Up to 60 kg - Maximum speed：
Up to 3,750mm/sec - Stroke：
150 ~ 4,000mm
Feature
01Achieves Maximum Conveyance Speed of 3,750 mm/sec
By increasing motor output and adopting a high-lead design, the single axis robots achieves a maximum speed of 3,750 mm/sec. It can transport loads of up to 60 kg at 3,750 mm/sec when equipped with a 400 W motor.
02Compatible with Long-Stroke Applications
Compared to conventional single axis robots (FLIP-X series “B14H”), we have achieved a maximum stroke of 4,000 mm—approximately 1.23 times longer. This enables long-distance transfer between processes in various production facilities.
Various data
Specifications for each model are currently being prepared and will be published at a later date.
