Robot cable (YHX controller)

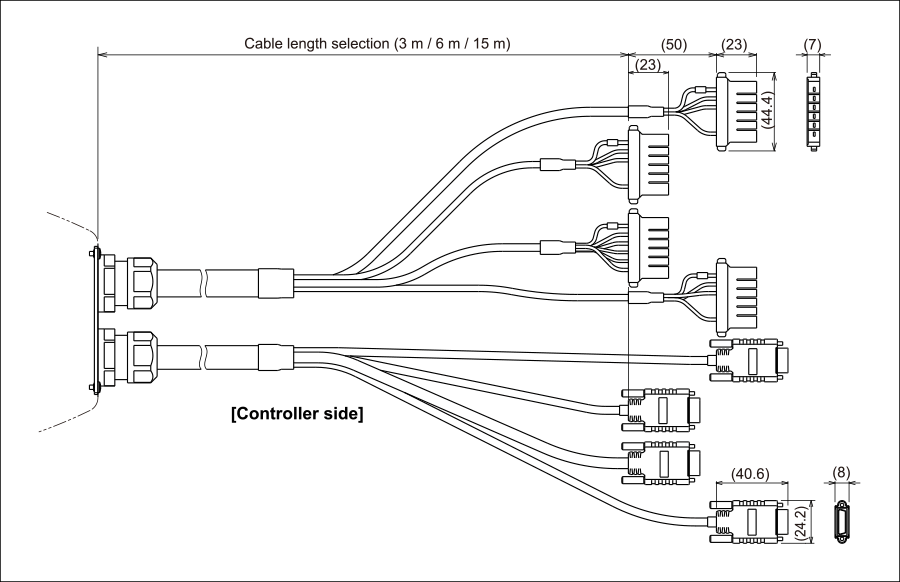

The robot cable is a cable joining the robot to the controller.
Single-axis robots GX series* All cables are bending cables.
Encoder cable (Common for GX series)
Extraction specifications
| Cable length | Product model | Part No. |
|---|---|---|
| 3m | GXCC-ENC-R3R | KES-M4751-30 |
| 5m | GXCC-ENC-R5R | KES-M4751-50 |
| 10m | GXCC-ENC-R10R | KES-M4751-A0 |
Extraction specifications
| Cable length | Product model | Part No. |
|---|---|---|
| 3m | GXCC-ENC-R3F | KES-M4755-30 |
| 5m | GXCC-ENC-R5F | KES-M4755-50 |
| 10m | GXCC-ENC-R10F | KES-M4755-A0 |
Power cable (GX05, GX05L, GX07)
Extraction specifications
| Cable length | Product model | Part No. |
|---|---|---|
| 3m | GXCC-UVW40-R3R | KES-M4752-30 |
| 5m | GXCC-UVW40-R5R | KES-M4752-50 |
| 10m | GXCC-UVW40-R10R | KES-M4752-A0 |
Extraction specifications
| Cable length | Product model | Part No. |
|---|---|---|
| 3m | GXCC-UVW40-R3F | KES-M4756-30 |
| 5m | GXCC-UVW40-R5F | KES-M4756-50 |
| 10m | GXCC-UVW40-R10F | KES-M4756-A0 |
Power cable (GX10, GX12)
Extraction specifications
| Cable length | Product model | Part No. |
|---|---|---|
| 3m | GXCC-UVW60-R3R | KES-M4753-30 |
| 5m | GXCC-UVW60-R5R | KES-M4753-50 |
| 10m | GXCC-UVW60-R10R | KES-M4753-A0 |
Extraction specifications
| Cable length | Product model | Part No. |
|---|---|---|
| 3m | GXCC-UVW60-R3F | KES-M4757-30 |
| 5m | GXCC-UVW60-R5F | KES-M4757-50 |
| 10m | GXCC-UVW60-R10F | KES-M4757-A0 |
Power cable (GX16, GX20)
Extraction specifications
| Cable length | Product model | Part No. |
|---|---|---|
| 3m | GXCC-UVW80-R3R | KES-M4754-30 |
| 5m | GXCC-UVW80-R5R | KES-M4754-50 |
| 10m | GXCC-UVW80-R10R | KES-M47547-A0 |
Extraction specifications
| Cable length | Product model | Part No. |
|---|---|---|
| 3m | GXCC-UVW80-R3F | KES-M4758-30 |
| 5m | GXCC-UVW80-R5F | KES-M4758-50 |
| 10m | GXCC-UVW80-R10F | KES-M4758-A0 |
Electric actuators YLE series* All cables are bending cables.
Flexible encoder cable + Power cable (Common for YLE series)
| Cable length | Product model | Part No. |
|---|---|---|
| 3m | YLECC-PE-R3 | KFB-M4751-31 |
| 5m | YLECC-PE-R5 | KFB-M4751-51 |
| 10m | YLECC-PE-R10 | KFB-M4751-A1 |
Flexible brake cable + Sensor cable (Brake specification, Sensor specification)
| Cable length | Product model | Part No. |
|---|---|---|
| 3m | YLECC-BS-R3 | KFB-M4752-30 |
| 5m | YLECC-BS-R5 | KFB-M4752-50 |
| 10m | YLECC-BS-R10 | KFB-M4752-A0 |
