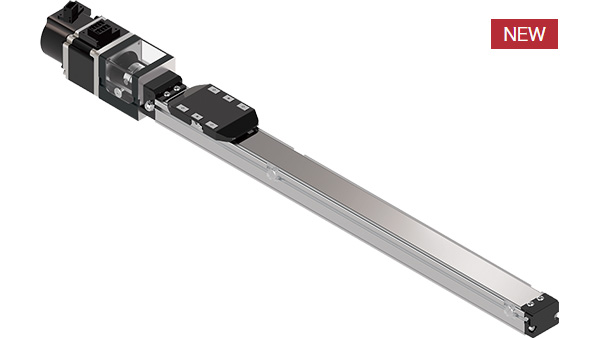

Single axis robots Robonity Basic model Low-Profile type ABFS
Contributes to equipment downsizing with a structure that minimizes overall height.
Basic model Low-Profile type ABFS
Compact, high-lead compatible, Standard cleanroom compliance.
Low-profile single axis robots with reduced overall height.
These single axis robots contributes to equipment downsizing.
- Maximum payload：
Up to 115 kg - Maximum speed：
Up to 1,800mm/sec - Stroke：
50 ~ 1,250mm
Feature

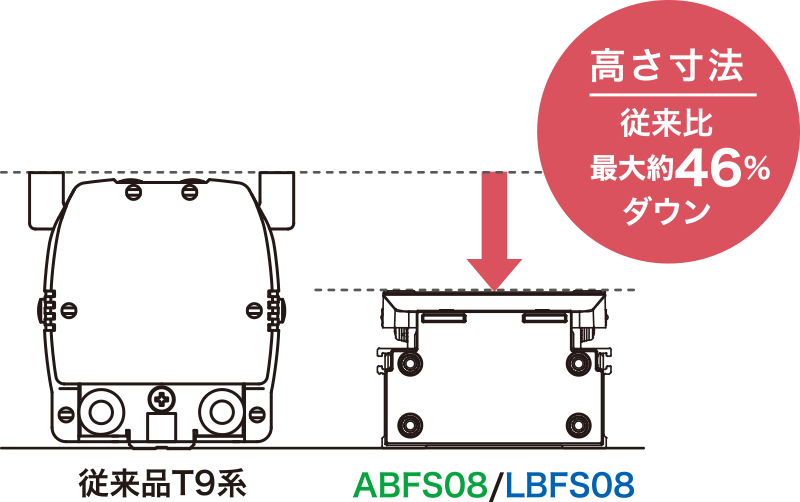

01Equipment Downsizing Made Possible
Equipment can be scaled down Compared to conventional single axis robots.
The outer rail system, which integrates a low-profile aluminum frame with guide rails, reduces height by approximately 20 to 46% compared to conventional models. Furthermore, the overall height reduction contributes to the compact design of the entire device.
02Improved Static Load Moment
Despite its slim design, rigidity in the pitching, yawing, and rolling directions has been approximately doubled compared to conventional models. It boasts high precision with repeat positioning accuracy of ±0.005mm and running accuracy of ±0.02/800mm.
Various data
Specifications for each model are currently being prepared and will be published at a later date.
