The CN1 Carbon-Neutral Paint Line

Each step in the Monozukuri process is accompanied by its own distinct soundtrack. In the same manner, you can feel the heat reach your skin and different smells waft under your nose—a chorus of metallic notes rings out, the heat brushes your cheeks, and a strangely familiar smell lingers in the air...

Even with your eyes closed, you can roughly tell what kind of work is being done.

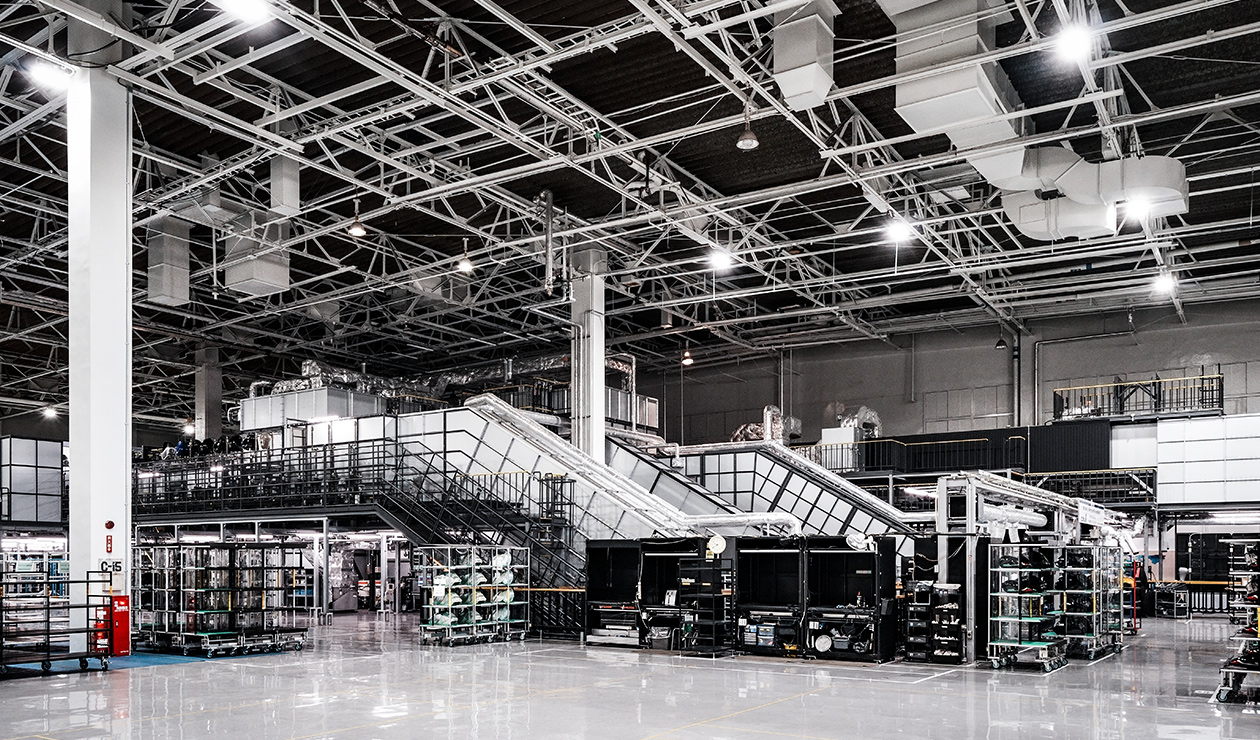

In February 2025, Yamaha Motor started operating the motorcycle industry’s first carbon-neutral paint line—CN1. Its standout trait is the fact that it is an all-electric paint line using no fossil fuels. The facility housing the line is a two-tone environment in jet black—a color effective for examining paint quality—and a dull gray that the line workers have nicknamed Takumi Gray, which represents the pride they bring to their work.

The space is strikingly different from the typical paint shop; there are no individual booths for each process nor smells of solvents in the air. Instead, it is a polished and markedly open environment that allows one to visually understand the flow of the painting process—beautiful and functional at the same time. Yamaha Motor’s interpretation of a smart factory can be found in this next-generation paint workplace that enables the Ultra Miracreate precision paint process for stunning sheen and saturation.

Yamaha Motor’s roots as a company are in making musical instruments, giving it a traditional culture that places great importance on aesthetic value. Beginning in the 1970s with candy colors, the company has developed sunburst, mirror-clear, and other uniquely beautiful paint finishes that harness the qualities of both mass production and artisanship. However, many of these resulted from the visions held by the product designers and planners, with Yamaha’s craftsmen and engineers in the paint technology departments calling on their skills and experience to devise painting techniques that would bring those visions into the real world.

In contrast, Ultra Miracreate is an innovation originating from the factory floor spearheaded by the paint technology engineers themselves—from conceptualization and establishing technical feasibility through to real-world implementation. Through meticulous calculations and countless repetitions of trial and error, Yamaha was able to create a painting process delivering astonishing levels of beauty.

The biggest factor influencing the incredible sheen and saturation Ultra Miracreate delivers is precise film thickness control. Even if a surface appears to have an even coat of paint, there are disparities at the micron-level imperceptible to the eye. Ultra Miracreate combines ultra-precise film thickness control technology with various requirements to reduce those micron-level variations as much as possible, giving the surface an unprecedented brilliance.

The distance between the spray nozzle and surface is always kept constant, with the spray directed at the surface at exactly 90°. Once these requirements are met, the robot arm begins spraying the workpiece while moving around it at set speeds, while the other arm holding the workpiece aids in the spray work with strikingly lifelike movements.

The eyes of an artisan with the skills to hand-spray a sunburst finish are not looking where the paint is hitting the surface; they are checking the just-painted surface to assess it. Only then does the artisan redirect the gun toward a new surface to be sprayed. Even techniques like these that rely on trained human senses were “translated” into numbers and coded into the robots by expert programmers.

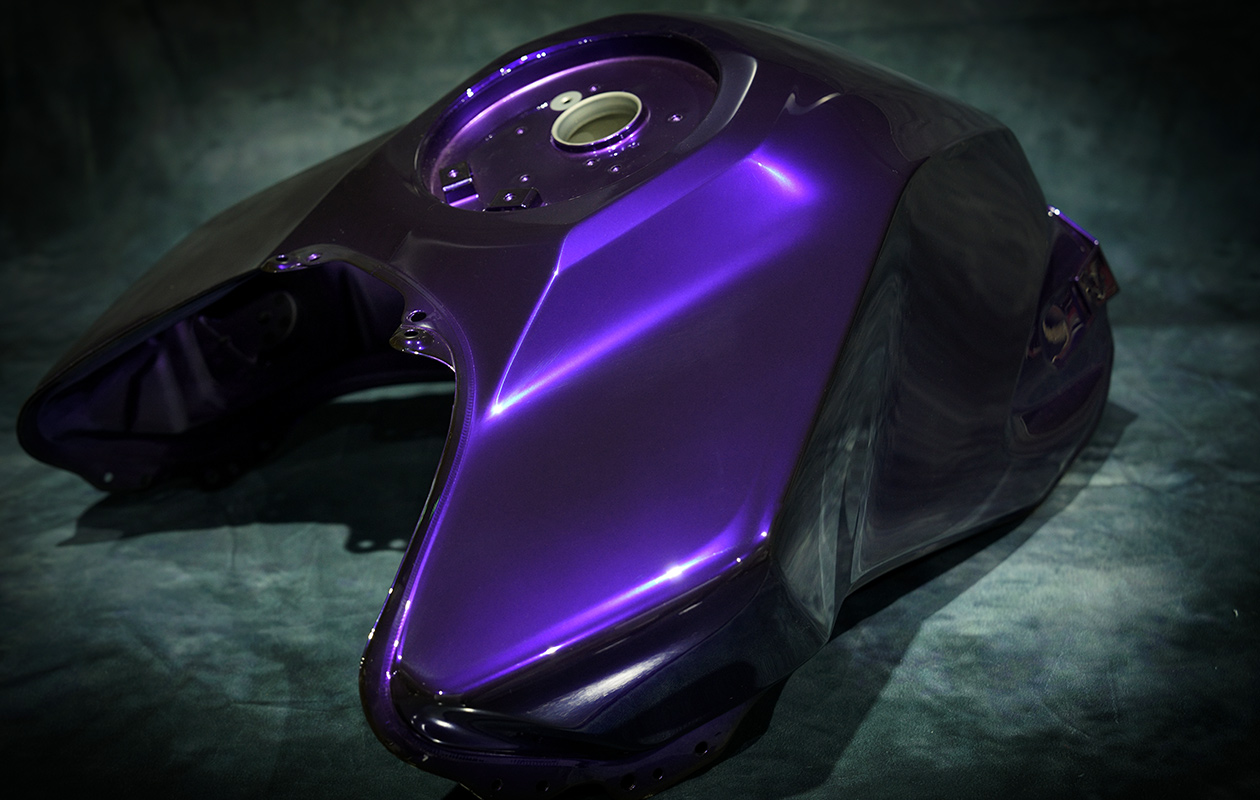

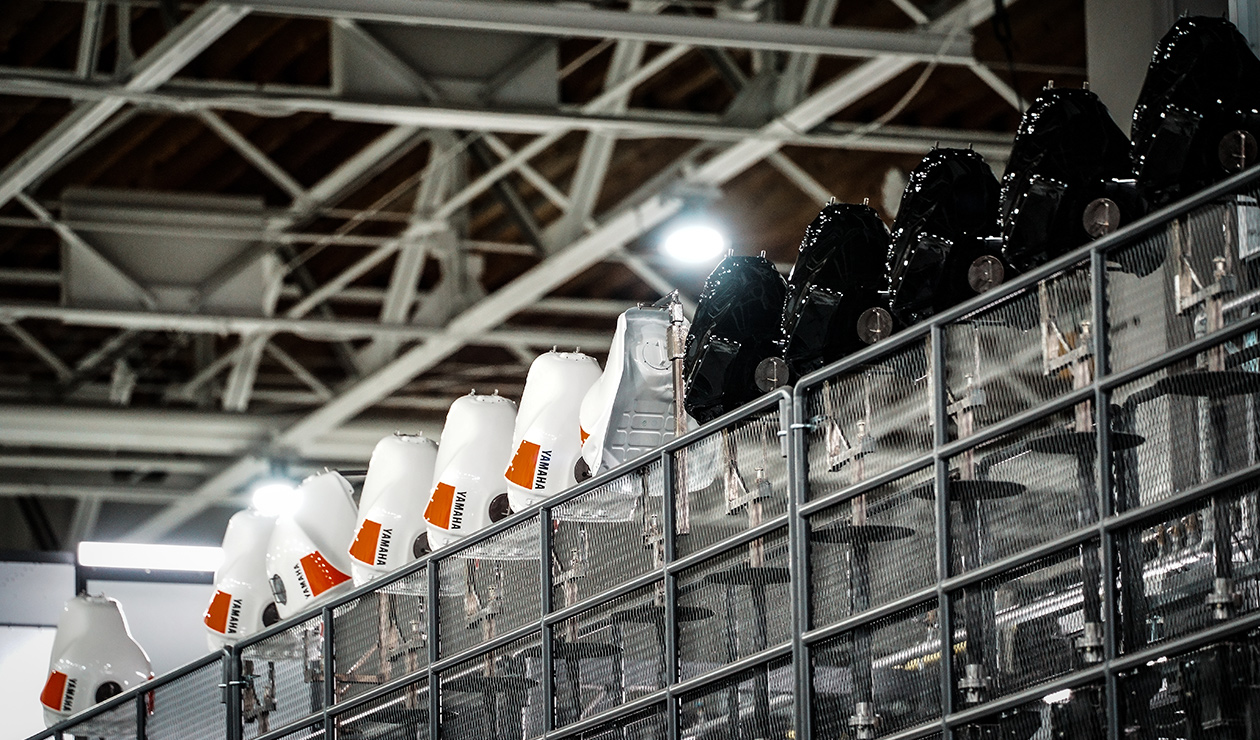

Workpieces now precision-coated with several layers of paint slowly make their way towards CN1’s exit. The workpieces—all varying in color, shape, and material—are lined up for final inspection in no particular order, a surprising sight for a cutting-edge facility. After a big blue metal fuel tank comes a red tank for a smaller model and then comes shimmering purple plastic exterior bodywork—all manner of parts flow down the same line. This flexibility and adaptability are also key strengths of Yamaha Motor’s carbon-neutral painting line.

“One of the roles we’ve had until now was to bring high goals to meet to the factory floor and thereby encourage further advances in painting technology,” explains a product designer working on motorcycle CMFG (Color, Materials, Finish, Graphics). “But when we see and touch the resulting beauty firsthand and start imagining the other possibilities a technology holds, it gets our own creative juices flowing. With the beauty and high versatility CN1 brings to the table, we may be able to spark some major transformations in the future, like colors tailored to each individual customer or all-new methods for taking on orders for model color schemes.”

Watching the painting robots go about their work on a monitor, the movements they trace seem a bit smoother and more refined than previous iterations. Those fluid movements hint at the hand-spraying mastery they “inherited” from Yamaha’s painting artisans, all while minimizing waste and reducing paint usage by about 30% compared to previous methods.

CN1 is a sustainable, carbon-neutral painting line, but it does not rely solely on electrification to achieve that. Behind it lies an accumulation of countless challenges overcome—all to make beauty itself more sustainable.
