200-85ps Two Strokes
Main specifications of the 200 to 85 horsepower two strokes
200A / L200A
| Engine Type | 90 deg. V6 |
|---|---|
| Displacement [cm3] | 2596 |
| Bore x Stroke [mm] | 90.0 x 68.0 |
| Max. Prop Shaft Output [kW (ps)] @r/min | 147.1 (200) @5000 |
| Fuel Induction System | Carburetor |
| Engine Transom Height[mm (inch)] | L: 516 (20.3), X: 642 (25.3) (*depending on model) |
| Dry Weight [kg] * | 178-186 |
| Starting System | Electric Starter |
| Controls | Remote Control |
| Tilt System | Power Trim & Tilt |
| Lubrication System | Pre-mixed Fuel and Oil |

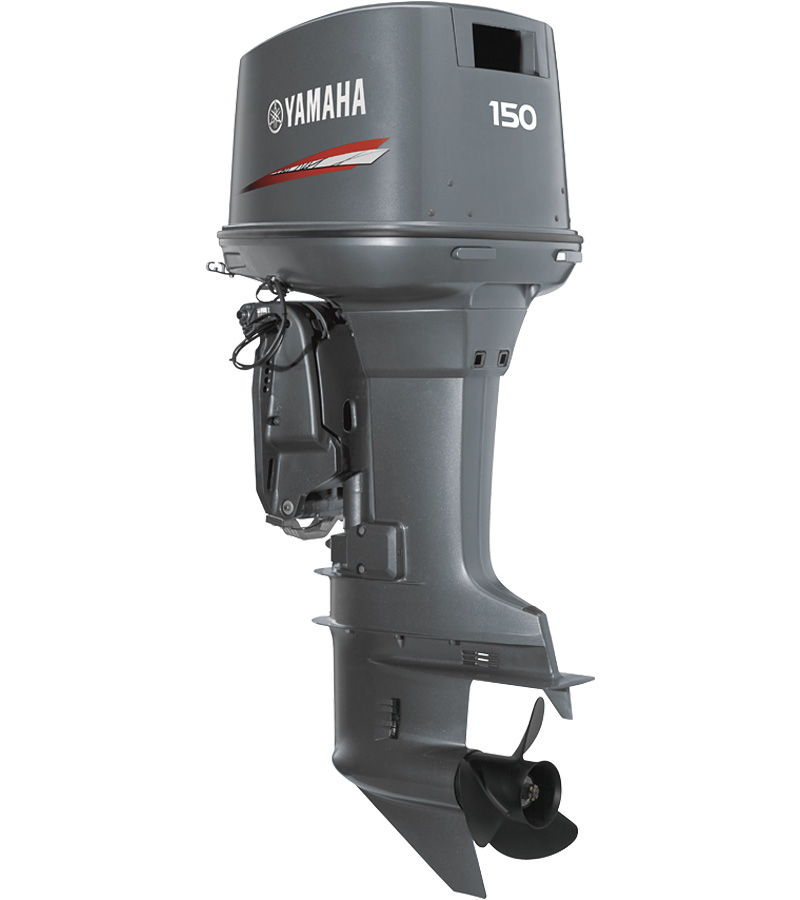

150A / L150A
| Engine Type | 90 deg. V6 |
|---|---|
| Displacement [cm3] | 2596 |
| Bore x Stroke [mm] | 90.0 x 68.0 |
| Max. Prop Shaft Output [kW (ps)] @r/min | 110.3 (150) @5000 |
| Fuel Induction System | Carburetor |
| Engine Transom Height[mm (inch)] | L: 516 (20.3), X: 642 (25.3) (*depending on model) |
| Dry Weight [kg] * | 178-186 |
| Starting System | Electric Starter |
| Controls | Remote Control |
| Tilt System | Power Trim & Tilt |
| Lubrication System | Pre-mixed Fuel and Oil |

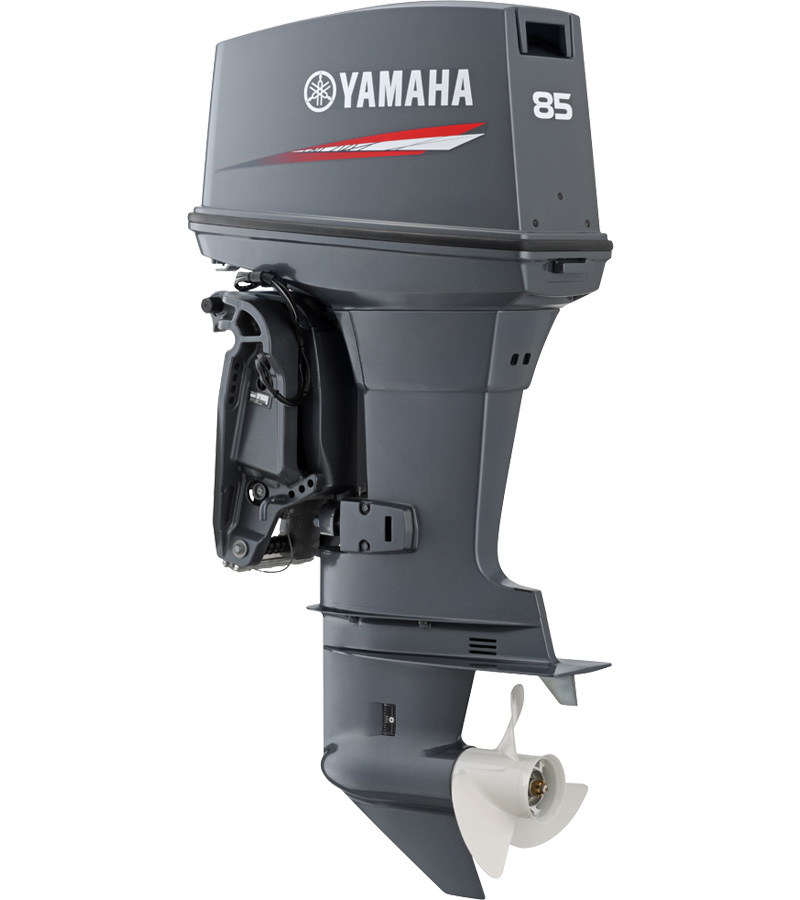

85A
| Engine Type | In-line 3 |
|---|---|
| Displacement [cm3] | 1140 |
| Bore x Stroke [mm] | 82.0 x 72.0 |
| Max. Prop Shaft Output [kW (ps)] @r/min | 62.5 (85) @5000 |
| Fuel Induction System | Carburetor |
| Engine Transom Height[mm (inch)] | L: 521 (20.5), Y: 572 (22.5), X: 647 (25.5) (*depending on model) |
| Dry Weight [kg] * | 113-124 |
| Starting System | Electric Starter |
| Controls | Remote Control or Tiller Handle (*depending on model) |
| Tilt System | Power Trim & Tilt or Hydro Tilt (*depending on model) |
| Lubrication System | Pre-mixed Fuel and Oil |
* : with propeller
Propellers are sold separately for some outboard motor models.
The lineups of outboard models offered differ by country or area. Product names, coloring and graphics may also differ. The specifications of outboards shown on this website may be changed or production discontinued without notice.
Always read your owner's manual before using the outboard and be sure to use it properly.
Direct inquiries concerning Yamaha outboards to your country's distributor or local dealership..
