JWX-2
*Specifications may vary slightly by region; the product in your market may differ from the images shown.
Adapting Yamaha’s Pioneering eBike Technology for Wheelchairs

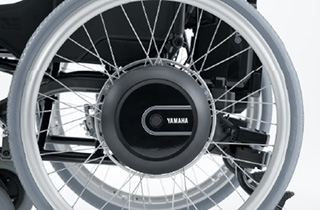

In a world-first, Yamaha adapted the technology from its eBikes
to create a kit for electrifying manual wheelchairs. The electric motor
provides a power assist based on the force applied to the handrims,
as if someone is gently pushing you from behind.
Key Features
This wheelchair combines the power of handrim propulsion with motor assistance. It expands the possibilities for individuals who previously found manual wheelchair propulsion difficult due to environmental or physical constraints.

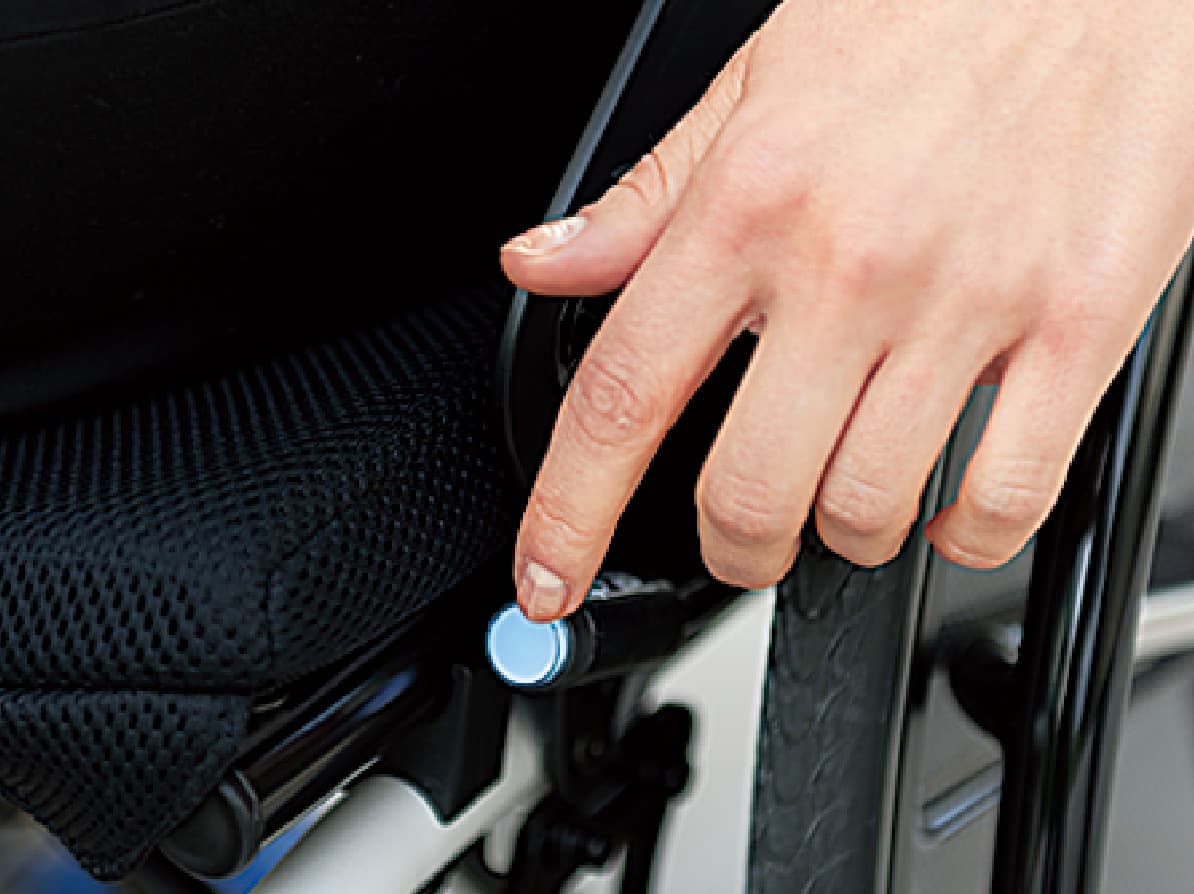

- Single-Press Mode Switching
- Switching between low and high power assist levels is done with a single push of the mode button, which lights up or turns off to indicate the current mode.
• Ride Mode 1 (button lit): Low power assist*
• Ride Mode 2 (button off): High power assist*
*Factory default settings. Power assist characteristics can be changed via the JW Smart Tune software.

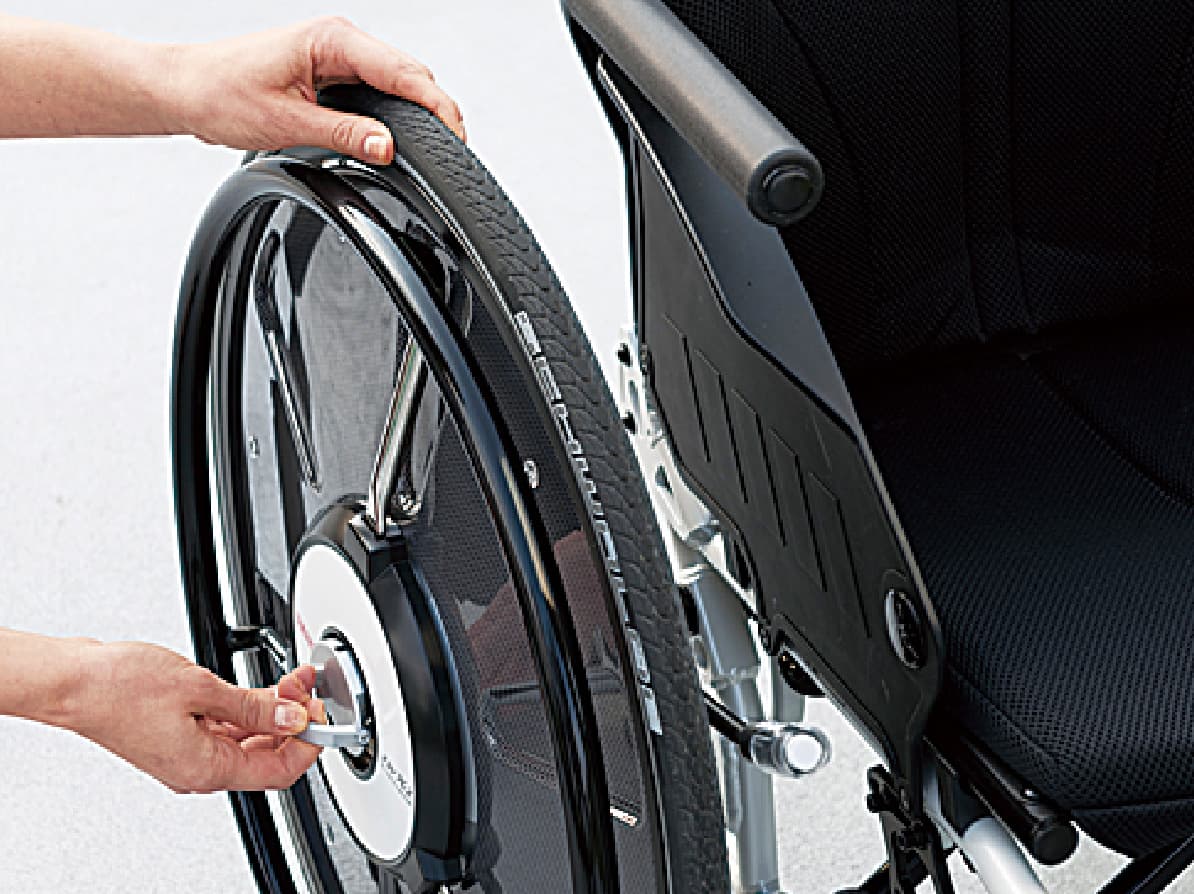

- Easy Removal for Transport
- The drive wheels can be quick-released from the wheelchair frame for compact and easy storage in a car for transport and then fitted again once at the day’s destination.
*Depending on the frame of the wheelchair, the electric motor unit/drive wheels may not be detachable.
- Smart Technology
-
- Smart Control System is Yamaha's proprietary operating system to control all components as one system – this feature is unique in the power assist mobility market
- Smart Tune Software customizes sensitivity, drivability and provides troubleshooting
- Trained professionals can use Smart Tune to customize two different driving modes. A few of the driving mode options available include:
• Level of power
• Level of right and left arm assist
- Yamaha Performance
-
- Travel longer and farther with a battery range that averages over 12.5 miles for nickel batteries and 22.5 miles for Lithium
- Propulsion speeds increased on average 23% per user
- Can enable riders to travel more distance with more comfort and less effort
- Adaptable
-
- Serves a wide range of riders
- Can fit a wide range of wheelchairs
- Safety First
-

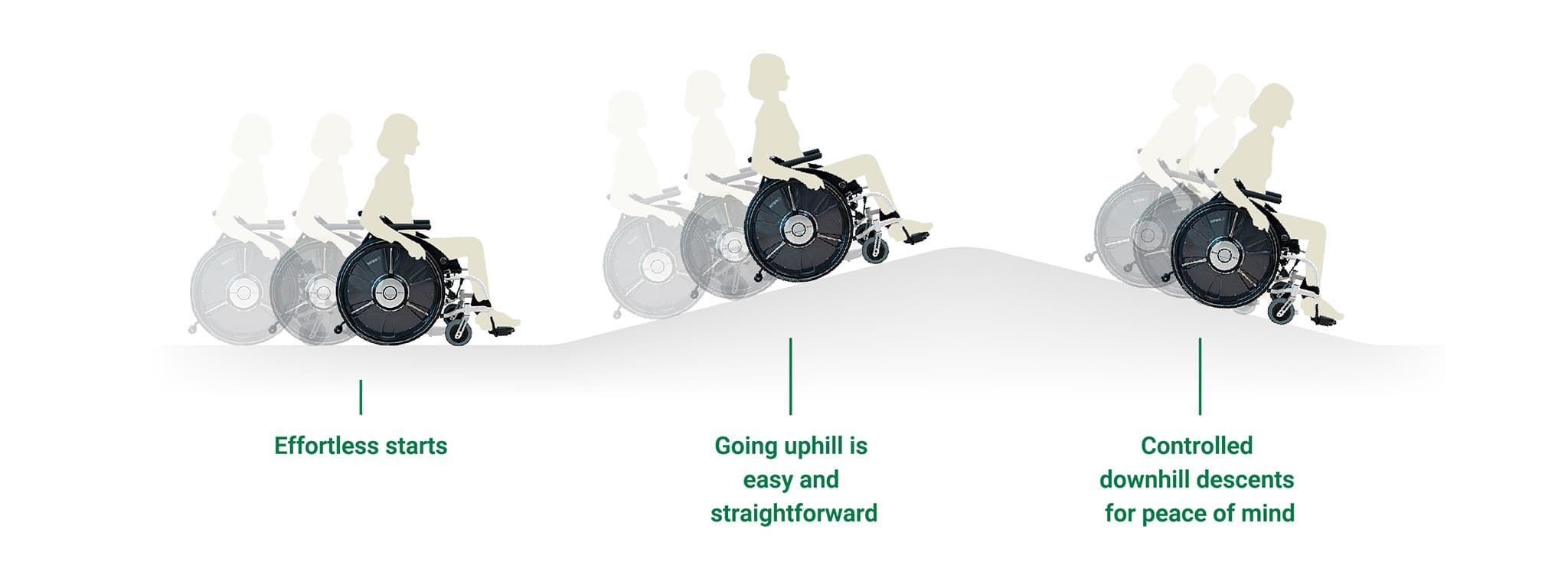

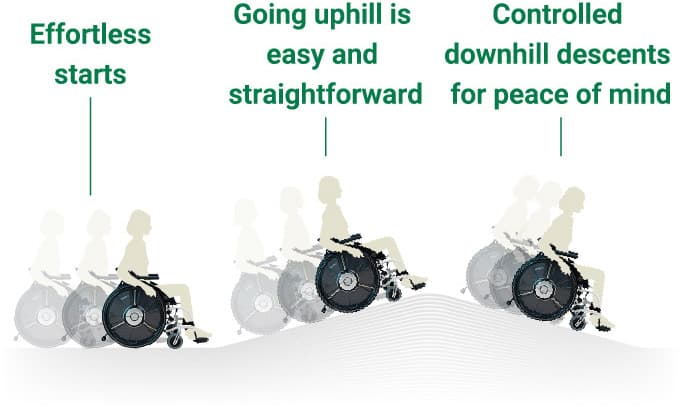

- Built-in control features include rollback prevention, downhill speed control, uphill ascent assist, and side slope stability control
- Customizable
-
- Ability to customize for many types of riders such as pediatric, adolescent, geriatric, hemiplegic, paraplegic, and quadriplegic
- Especially useful for riders with uneven arm strength
- Intuitive Agility
-
- Wheel-to-wheel communication allows for more precise control and operation
- Dual mode switch enables users to go from low to high mode and back at the switch of a button
- Easy Transport
-
- Quick-release wheels offer easy storage and transport
- Potential to avoid additional vehicle costs
- Sleek Style
-
- Sleek, modern design retains manual chair look
- High-quality performance tires
Key parameters customizable with the Smart Tune software
- Assist motor power
- Set the power assist levels for forward and reverse movement
- Balance adjustment
- Set the sensitivity for the left and right handrims
- Coasting distance
- Adjust the distance of assisted power with one handrim stroke
- Side slope assist
- Adjust the level of side slope assist
Variations
- Wheel Sizes
-
- • 22” spoke wheels
- • 24” spoke wheels
- Tires
-
- • Standard (gray)
- • Sport (black)
- • Solid (black) *Available only with 24” wheels
- Handrims
-
- • Uncoated (stainless steel)
- • Coated (stainless steel + black-colored coating)
- Battery Types
-
- • Lithium-ion 24V battery
- • Nickel-metal hydride 24V battery
- Battery Mounts
-
- • Fixed to the motor
- • Battery bag behind the seat
Specifications

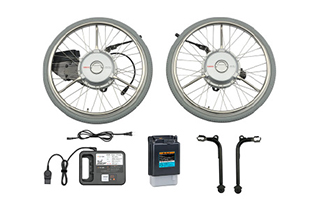

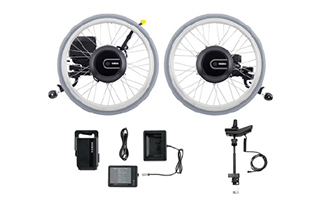

| Model | JWX-2 power assist unit for wheelchairs | ||||
|---|---|---|---|---|---|
| Weight | Total weight | With battery | Ni-MH battery | 17.5 kg (38.6 |b) | |
| Li-ion battery | 17.9 kg (39.5 lb) | ||||
| Without battery | 14.5 kg (32.0 lb) | ||||
| Part weight | Ni-MH battery | 3.0 kg (6.6 lb) | |||
| Li-ion battery | 3.4 kg (7.5 lb) | ||||
| Tire size | Standard (Air tire) | 558 mm (22 inches) | 609 mm (24 inches) | ||
| Puncture-proof tire | - | 609 mm (24 inches) | |||
| Drive motor | AC servomotor 24V 110W x 2 (30 minutes rated output) |
||||
| Drive system | Rear-wheel direct drive | ||||
| Brake system | Motor generative brake | ||||
| Steering system | Handrim operation | ||||
| Control system | Microprocessor control | ||||
| Maximum safe slope angle, rated slope | 6° | ||||
| Operating conditions | Environment | Inside and outside | |||
| Temperature | -25 °C to 50 °C *3 | ||||
| IEC waterproof standard | IPX4 (resistance against splashing water) | ||||
| Load capacity (including the rider, luggage, and frame weight) | 130 kg (286 |b) *1 | ||||
| Travel range | Continuous travel range (in accordance with Yamaha spec) | With Ni-MH battery (JWB2) | 18 km (11.3 mi) *2 | ||
| With Li-ion battery (ESB1) | 27 km (16.7 mi) *2 | ||||
- *1
- The value is the load capacity for the JWX-2. When the wheelchair is completely assembled, the total weight of the rider and luggage must not exceed the load capacity of the wheelchair frame.
If the wheelchair is operated continuously with a load that exceeds this value, the product could malfunction or be damaged, or its life could be shortened
- *2
- The travel range varies depending on the conditions of the road surface (travel over curbs, on slopes, and so on) and may be shorter than this value.
- *3
- This is the available temperature range. Confirm the recommended temperatures for "7.3." and "8.3."
| Battery and Charger | Nickel-Metal Hydride | Lithium-ion | |||
|---|---|---|---|---|---|
| Battery | Model | JWB2 | ESB1 | ||
| Type | Rechargeable dry battery with built-in microprocessor | ||||
| Nominal output voltage | 24 V | 25.2 V | |||
| Rated output (5-hour rate) | 6.7 Ah (160.8 Wh) | 10.08 Ah (254 Wh) | |||
| Battery charger | Model | ESC3 | |||
| Charging method | Automatic charging controlled by the microprocessor | ||||
| Rated output during charging | 29 V • 2.6 A | 29.2 V • 3A | |||
| Chargeable battery | JWB2 *1 | ESB1 *1 | |||
| Charging time | Time for normal charging | Approx. 3 hr | Approx. 4 hr | ||
| Time for refresh charging | 3-19 hr | - | |||
- *1
- The Ni-MH battery and Li-ion battery each have a dedicated charger. The dedicated chargers are not interchangeable.
