BATTERY PACK & CHARGER
The battery packs are designed to cater to a variety of bicycle types
LINEUP
Yamaha offers a wide range of batteries, including multi-location designs that can be integrated into the frame, as well as external batteries for customers looking for practicality and convenience.
*All photos are European specifications.
External Crossover Battery
Specifications
| Type |
PASB6 (Lithium-ion battery) |
Watt-Hour Rating |
410 Wh |
| Capacity |
11.0 Ah |
| Voltage |
36.5 V |
| Charging time |
approx. 3.5 hrs |
| Weight |
2.8 kg |
| Type |
PASB6 (Lithium-ion battery) |
| Watt-Hour Rating |
500 Wh |
| Capacity |
13.4 Ah |
| Voltage |
36 V |
| Charging time |
approx. 4.0 hrs |
| Weight |
2.9 kg |
Multi Location Battery
Specifications (410 Wh / 500 Wh)
| Type |
PASB6 (Lithium-ion battery) |
| Watt-Hour Rating |
410 Wh |
| Capacity |
11 Ah |
| Voltage |
36.5 V |
| Charging time |
approx. 3.5 hrs |
| Weight |
3.0 kg |
| Type |
PASB6 (Lithium-ion battery) |
| Watt-Hour Rating |
500 Wh |
| Capacity |
13.4 Ah |
| Voltage |
36 V |
| Charging time |
approx. 4.0 hrs |
| Weight |
3.0 kg |
Specifications (600 Wh)
| Type |
PASB4 (Lithium-ion battery) |
| Watt-Hour Rating |
600 Wh |
| Capacity |
16.5 Ah |
| Voltage |
36 V |
| Charging time |
approx. 5.0 hrs |
| Weight |
3.8 kg |
Down Tube Battery
Specifications
| Type |
PASB5 (Lithium-ion battery) |
| Watt-Hour Rating |
400 Wh |
| Capacity |
11 Ah |
| Voltage |
36 V |
| Charging time |
approx. 3.5 hrs |
| Weight |
2.9 kg |
| Type |
PASB5 (Lithium-ion battery) |
| Watt-Hour Rating |
500 Wh |
| Capacity |
13.6 Ah |
| Voltage |
36 V |
| Charging time |
approx. 4.0 hrs |
| Weight |
3.0 kg |
Rear Carrier Battery
Specifications
| Type |
PASB5 (Lithium-ion battery) |
| Watt-Hour Rating |
400 Wh |
| Capacity |
11 Ah |
| Voltage |
36 V |
| Charging time |
approx. 3.5 hrs |
| Weight |
2.9 kg |
| Type |
PASB5 (Lithium-ion battery) |
| Watt-Hour Rating |
500 Wh |
| Capacity |
13.6 Ah |
| Voltage |
36 V |
| Charging time |
approx. 4.0 hrs |
| Weight |
3.0 kg |

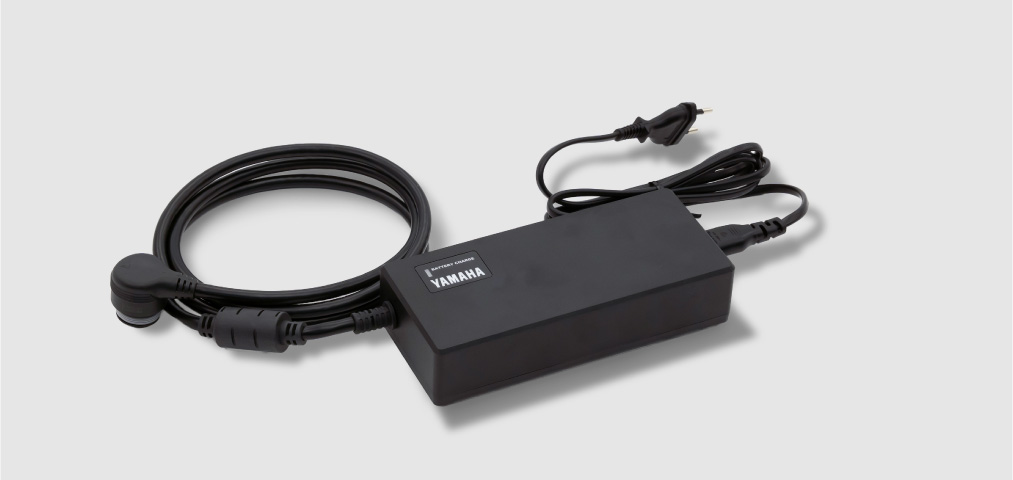

Battery Charger
Photo:PASC10
Specifications
| Type |
PASC9 |
| Input voltage |
220 - 240 V |
| Frequency |
50 / 60 Hz |
| Size |
184X86X50 mm ( 791 cc ) |
| Applicable type battery |
PASB6 |
| Type |
PASC10 |
| Input voltage |
220 - 240 V |
| Frequency |
50 / 60 Hz |
| Size |
184X86X50 mm ( 791 cc ) |
| Applicable type battery |
PASB2 / PASB4 / PASB5 |
| Type |
PASC11 |
| Input voltage |
100 – 240V |
| Frequency |
50 / 60 Hz |
| Size |
239X92X42 mm ( 923 cc) |
| Applicable type battery |
PASB6 |
Safety Information
This battery charger can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the battery charger in a safe way and understand the hazards involved.
Children shall not play with the battery charger.
Cleaning and user maintenance shall not be made by children without supervision.
If the power cable is damaged, stop using the battery charger and have it inspected at an authorized dealer.
