L4 200-115ps : Specifications

Yamaha's In-Line Fours are not only much lighter but are also capable in a wide range of applications

MENU

F200N / FL200N

Engine Type 4-stroke, 16-valve, DOHC, In-line 4
Displacement [cm3] 2785
Bore x Stroke [mm] 96.0 × 96.2
Max. Prop Shaft Output [kW (ps)] @r/min 147.1 (200)@5500
Fuel Induction System Fuel injection
Engine Transom Height[mm (inch)] L:516(20.4), X: 642(25.3)
Dry Weight [kg] * 243-245
Starting System Electric starter
Controls Digital Electronic Control (DEC)
Tilt System Power trim and tilt
Lubrication System Wet sump
Digital Network Available

F200P / FL200P

Engine Type 4-stroke, 16-valve, DOHC, In-line 4
Displacement [cm3] 2785
Bore x Stroke [mm] 96.0 × 96.2
Max. Prop Shaft Output [kW (ps)] @r/min 147.1 (200)@5500
Fuel Induction System Fuel injection
Engine Transom Height[mm (inch)] L:516(20.4), X: 642(25.3)
Dry Weight [kg] * 241-242
Starting System Electric starter
Controls Digital Electronic Control (DEC)
Tilt System Power trim and tilt
Lubrication System Wet sump
Digital Network Available

F200Q / FL200Q

Engine Type 4-stroke, 16-valve, DOHC, In-line 4
Displacement [cm3] 2785
Bore x Stroke [mm] 96.0 × 96.2
Max. Prop Shaft Output [kW (ps)] @r/min 147.1 (200)@5500
Fuel Induction System Fuel injection
Engine Transom Height[mm (inch)] L:516(20.4), X: 642(25.3)
Dry Weight [kg] * 240-241
Starting System Electric starter
Controls Mechanical control
Tilt System Power trim and tilt
Lubrication System Wet sump
Digital Network Available

F200F / FL200F

Engine Type 16-Valve, DOHC with VCT, In-line 4
Displacement [cm3] 2785
Bore x Stroke [mm] 96.0 x 96.2
Max. Prop Shaft Output [kW (ps)] @r/min 147.1 (200) @5500
Fuel Induction System Fuel Injection
Engine Transom Height[mm (inch)] L: 516 (20.3), X: 643 (25.3) (*depending on model)
Dry Weight [kg] * 226,227
Starting System Electric Starter
Controls Remote Control
Tilt System Power Trim & Tilt
Lubrication System Wet Sump
Digital Network Available

F200G / FL200G

Engine Type 16-Valve, DOHC with VCT, In-line 4
Displacement [cm3] 2785
Bore x Stroke [mm] 96.0 x 96.2
Max. Prop Shaft Output [kW (ps)] @r/min

147.1 (200) @5500

Fuel Induction System Fuel Injection
Engine Transom Height[mm (inch)] L: 516 (20.3), X: 643 (25.3)
Dry Weight [kg] * 226-228
Starting System Electric Starter
Controls Remote Control
Tilt System Power Trim & Tilt
Lubrication System Wet Sump
Digital Network Available

F175D / FL175D

Engine Type 4-stroke, 16-valve, DOHC, In-line 4
Displacement [cm3] 2785
Bore x Stroke [mm] 96.0 × 96.2
Max. Prop Shaft Output [kW (ps)] @r/min 128.7 (175)@5500
Fuel Induction System Fuel injection
Engine Transom Height[mm (inch)] L:516(20.4), X: 642(25.3)
Dry Weight [kg] * 243-244
Starting System Electric starter
Controls Digital Electronic Control (DEC)
Tilt System Power trim and tilt
Lubrication System Wet sump
Digital Network Available

F175F / FL175F

Engine Type 4-stroke, 16-valve, DOHC, In-line 4
Displacement [cm3] 2785
Bore x Stroke [mm] 96.0 × 96.2
Max. Prop Shaft Output [kW (ps)] @r/min 128.7 (175)@5500
Fuel Induction System Fuel injection
Engine Transom Height[mm (inch)] L:516(20.4), X: 642(25.3)
Dry Weight [kg] * 241
Starting System Electric starter
Controls Digital Electronic Control (DEC)
Tilt System Power trim and tilt
Lubrication System Wet sump
Digital Network Available

F175G

Engine Type 4-stroke, 16-valve, DOHC, In-line 4
Displacement [cm3] 2785
Bore x Stroke [mm] 96.0 × 96.2
Max. Prop Shaft Output [kW (ps)] @r/min 128.7 (175)@5500
Fuel Induction System Fuel injection
Engine Transom Height[mm (inch)] L:516(20.4), X: 642(25.3)
Dry Weight [kg] * 239-240
Starting System Electric starter
Controls Mechanical control
Tilt System Power trim and tilt
Lubrication System Wet sump
Digital Network Available

F175A

Engine Type 16-Valve, DOHC, In-line 4
Displacement [cm3] 2785
Bore x Stroke [mm] 96.0 x 96.2
Max. Prop Shaft Output [kW (ps)] @r/min 128.7 (175) @5500
Fuel Induction System Fuel Injection
Engine Transom Height[mm (inch)] L: 516 (20.3), X: 643 (25.3)
Dry Weight [kg] * 224,225
Starting System Electric Starter
Controls Remote Control
Tilt System Power Trim & Tilt
Lubrication System Wet Sump
Digital Network Available

F150H / FL150H

Engine Type 4-stroke, 16-valve, DOHC, In-line 4
Displacement [cm3] 2785
Bore x Stroke [mm] 96.0 × 96.2
Max. Prop Shaft Output [kW (ps)] @r/min 110.3 (150)@5500
Fuel Induction System Fuel injection
Engine Transom Height[mm (inch)] L:516(20.4), X: 642(25.3)
Dry Weight [kg] * 242-244
Starting System Electric starter
Controls Digital Electronic Control (DEC)
Tilt System Power trim and tilt
Lubrication System Wet sump
Digital Network Available

F150J / FL150J

Engine Type 4-stroke, 16-valve, DOHC, In-line 4
Displacement [cm3] 2785
Bore x Stroke [mm] 96.0 × 96.2
Max. Prop Shaft Output [kW (ps)] @r/min 110.3 (150)@5500
Fuel Induction System Fuel injection
Engine Transom Height[mm (inch)] L:516(20.4), X: 642(25.3)
Dry Weight [kg] * 240-241
Starting System Electric starter
Controls Digital Electronic Control (DEC)
Tilt System Power trim and tilt
Lubrication System Wet sump
Digital Network Available

F150L / FL150L

Engine Type 4-stroke, 16-valve, DOHC, In-line 4
Displacement [cm3] 2670
Bore x Stroke [mm] 94.0 × 96.2
Max. Prop Shaft Output [kW (ps)] @r/min 110.3 (150)@5500
Fuel Induction System Fuel injection
Engine Transom Height[mm (inch)] L:516(20.4), X: 642(25.3)
Dry Weight [kg] * 237-243
Starting System Electric starter
Controls Mechanical control
Tilt System Power trim and tilt
Lubrication System Wet sump
Digital Network Available

F150D / FL150D

Engine Type 16-Valve, DOHC, In-line 4
Displacement [cm3] 2670
Bore x Stroke [mm] 94.0 x 96.2
Max. Prop Shaft Output [kW (ps)] @r/min 110.3 (150) @5500
Fuel Induction System Fuel Injection
Engine Transom Height[mm (inch)] L: 516 (20.3), X: 643 (25.3)
Dry Weight [kg] * 222-227
Starting System Electric Starter
Controls Remote Control
Tilt System Power Trim & Tilt
Lubrication System Wet Sump
Digital Network Available

F150F / FL150F

Engine Type 16-Valve, DOHC, In-line 4
Displacement [cm3] 2670
Bore x Stroke [mm] 94.0 x 96.2
Max. Prop Shaft Output [kW (ps)] @r/min 110.3 (150) @5000
Fuel Induction System Fuel Injection
Engine Transom Height[mm (inch)] X: 643 (25.3)
Dry Weight [kg] * 223
Starting System Electric Starter
Controls Remote Control
Tilt System Power Trim & Tilt
Lubrication System Wet Sump
Digital Network Available

F130A

Engine Type 16-Valve, DOHC, In-line 4
Displacement [cm3] 1832
Bore x Stroke [mm] 81.0 x 88.9
Max. Prop Shaft Output [kW (ps)] @r/min 95.6 (130) @5800
Fuel Induction System Fuel Injection
Engine Transom Height[mm (inch)] L: 516 (20.3), X: 643 (25.3)
Dry Weight [kg] * 176-180
Starting System Electric Starter
Controls Remote Control
Tilt System Power Trim & Tilt
Lubrication System Wet Sump
Digital Network Available

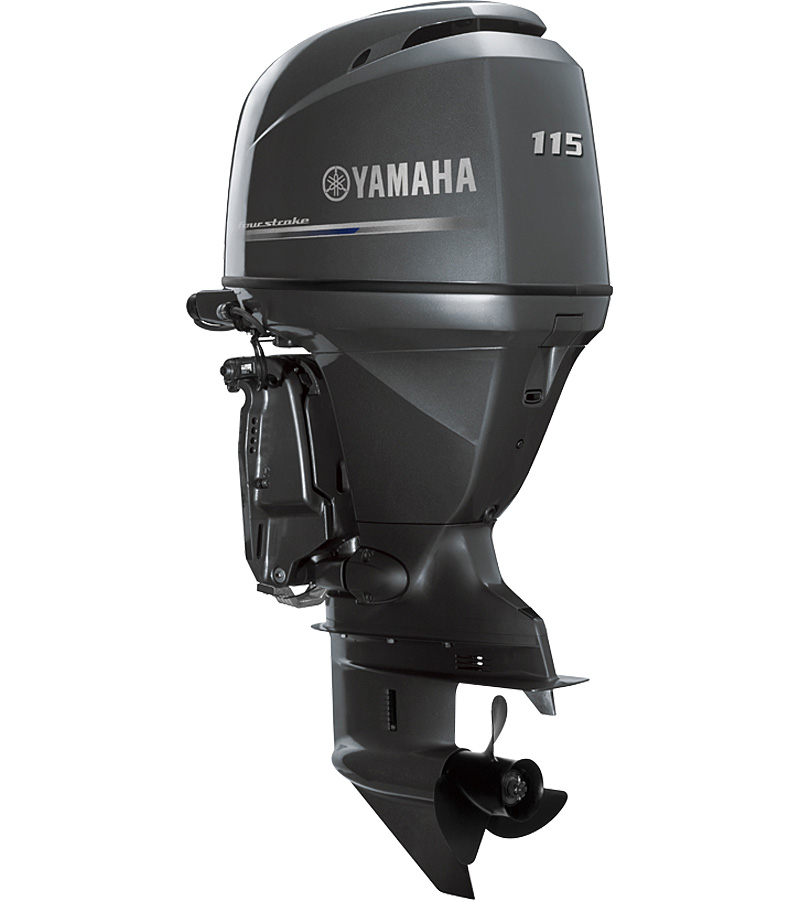

F115B / FL115B

Engine Type 16-Valve, DOHC, In-line 4
Displacement [cm3] 1832
Bore x Stroke [mm] 81.0 x 88.9
Max. Prop Shaft Output [kW (ps)] @r/min 84.6 (115) @5800
Fuel Induction System Fuel Injection
Engine Transom Height[mm (inch)] L: 516 (20.3), X: 643 (25.3) (*depending on model)
Dry Weight [kg] * 175-185
Starting System Electric Starter
Controls Remote Control or Tiller Handle (*depending on model)
Tilt System Power Trim & Tilt
Lubrication System Wet Sump
Digital Network Available

* : with propeller
Propellers are sold separately for some outboard motor models.

The lineups of outboard models offered differ by country or area. Product names, coloring and graphics may also differ. The specifications of outboards shown on this website may be changed or production discontinued without notice.
Always read your owner's manual before using the outboard and be sure to use it properly.
Direct inquiries concerning Yamaha outboards to your country's distributor or local dealership..
