RCX240・RCX240S

RCX240•RCX240SMulti-axis controller

  • Operation method :
    Program
    Operation via communication commands
  • Points :
    1000 points
  • Input power :
    AC200V
  • Position detection :
    Absolute
    Incremental
  • Controllable robots :
    All models

Please note that:

The current sensor on the RCX240S cannot be set to 20A.
As a controller stocked for maintenance, please order an RCX240 that can be set to any of 05A,10A and 20A.

Controller model selection table

Controller model selection table

Feature

01Supports all YAMAHA robot models

The RCX series supports all YAMAHA robot models such as the PHASER, FLIP-X and XY-X. It makes most types of applications possible since single-axis (FLIP-X/PHASER) and Cartesian robot can be used in any desired combination (not including some small single-axis robots).

02Complete absolute specs

The RCX uses complete absolute specifications so of course no origin return is needed when the power is turned on. It also supports incremental specifications on a completely identical system (The PHASER series utilizes a magnetic scale and supports semi-absolute or incremental specifications.)

03Longer extended absolute data backup time

Making an energy-saving backup circuit has drastically extended the retention time for absolute position data with no power applied. Ordinary model backup time was a maximum of 1 month has now been boosted to 1 year. Current position information can now be monitored during long vacations, equipment storage, or even during transport, and origin return is not needed when power is restored. This allows quick and easy production startups.

04Area check output function

This function provides an output signal when the robot enters a preset area. Up to four areas can be specified.

Area check output function

05Supports the robot vision "iVY System"

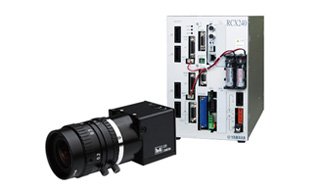

The RCX series also supports the YAMAHA robot vision "iVY System"capable of handling a vast range of applications yet is simple to setup. Installing the vision board inside the controller unit drastically simplifies the calibration task that up to now took a lot of time and trouble. Performing position offset at image recognition widens the device sphere of applications and makes it usable for general-purpose tasks (only supported on RCX240).

Supports the robot vision iVY System

06Dual-synchronous drive

Equipped with the dual drive function to control 2 axis in synchronization, which is of effective use for carrying heavy items and long stroke operation with the Cartesian robot. This function enables good use of high speed, acceleration/ deceleration features of the YAMAHA robots.

Note.
For the dual drive function, custom order arrangement is required. For more information, contact YAMAHA.

Dual-synchronous drive example.

Dual-synchronous drive example.

07Double-carrier anti-collision control function

Collisions between carriers when using double-carriages can be prevented by a control function within the controller. Former collision prevention measures such as zone judgments or external sensors are no longer needed so double-carriers are now easier to use than ever before.

083D circular interpolation control

2D and 3D linear and circular interpolation ARC control are possible, making the RCX141 controller ideal for sealing work, etc. (3-dimensional interpolation is only available on the RCX240)

3D circular interpolation control

09Palletizing function

This function can easily define a maximum of 20 types of pallets by just entering the teaching points for the 4 corner positions on the pallet. Entering teaching points along the height allows handling cubic pallets. Specify the defined pallet No. and execute the movement command to perform palletizing. The program can execute various actions such as 1 point → pallet, pallet → 1 point, pallet → pallet, etc.

Palletizing function

10Hand definition

This function operates the robot based on coordinates when the tool tip has been installed in the tip of the robot shaft in an offset position. This is especially effective during tool rotation on SCARA robots and robots with rotating shafts.

Hand definition

11Shift coordinates

A deviation or offset might occur in the coordinates during service tasks such as robot reinstallation or replacement. In those cases using the coordinates can be corrected by using the shift coordinate function so point data can be utilized without having to make changes and there is no need for reteaching.

Shift coordinates

12Passing point output control

This function can turn general outputs ON or OFF at specified points so operation can continue with no stops along an axis during interpolation tasks. This outputs a spray ON or OFF signal while still operating on an axis during sealing to allow stable and smooth coating of sealant.

Passing point output control

13Torque limiting drive

The motor torque can be limited during grasping and press-fitting operations.

Torque limiting drive

14Multitask function

This function executes multiple tasks (up to eight tasks) Multiple tasks will switch with the timesharing method. However, a priority can be assigned to each task. This priority can also be changed while tasks are running. The multitask function simplifies the entire system窶冱 control configuration and also improves the operation efficiency.

Task scheduling

Multitask function

15Sequence program

In addition to the standard tasks, a task to control input/output (parallel, serial, memory, timer) can be executed independently. As the sequence program is effective in the manual mode as well, it is usable to construct the safety system linked with the peripheral equipment.

162-robot control

Assigning 2 robot units as main and sub allows them to be simultaneously operated by 1 controller unit. Combining this with multi-tasking allows 1 controller unit to link 2 robot units in a smooth, sophisticated operation.

2-robot control

17Additional axis function "YC-Link"

Using an optional YC-Link, the RCX series controller and SR1 series single axis controller can be linked easily. If necessary, by linking some controllers, it is possible to control up to 8 axes (Max. 6 axes for simultaneous control).

Additional axis function "YC-Link"

18Full support software: VIP+

VIP+ is an easy to operate application software that makes it easy to visually understand tasks including robot operation, program writing and edit, and point teaching. The user interface has been vastly improved compared to previous support software VIP and is now extremely easy to use.

Full support software: VIP+

19Can be used with a "YRG series" electric gripper

All functions of a gripper can be controlled from one RCX240 controller. Setup and startup are very easy since no signal exchange with a PLC or host device is required.

Can be used with a "YRG series" electric gripper
